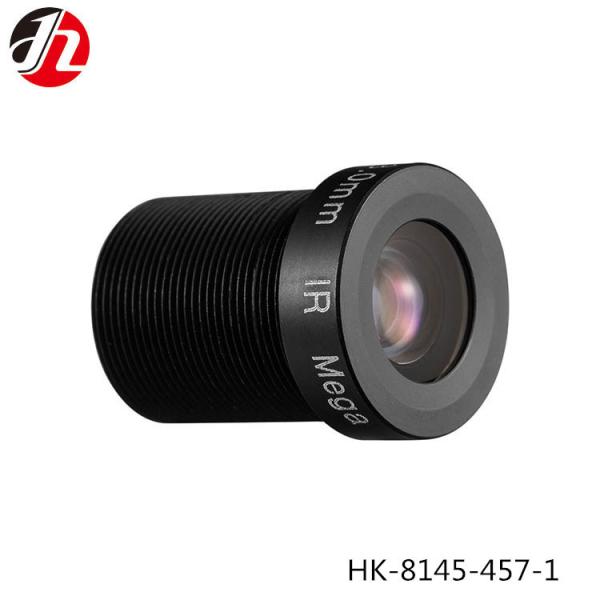

Waterproof 8mm Vehicle Camera Lenses 1/3" Wide Angle

Brand Name : GTD

Model Number : HK-8145-457-1

Place of Origin : CHINA

MOQ : 10pcs

Price : contact me

Payment Terms : T/T, L/C

Supply Ability : 500,000pcs/month

Delivery Time : 15 - 25 days after receipt of deposit / full amount

Packaging Details : The plastic box is loaded into the vacuum packaging bag and then loaded into the carton，also according to customers requirement

Thread Size : M12 * P0.5

Specification : HK-8145-457-1

Sensor Size : 1/3"

Wavelength : λ 400-700nm（COLOR)

Optical Distortion (Diagonal) : ＜-5%

Focal Length (EFL) : f 8 mm

F/NO (Infinite) : F/NO 2.0

Flange Back Length : FB 6.51 mm

Certification : IATF 16949, ISO 9001

Contact Now

Vehicle Camera Lenses Car Waterproof HD Rear View Wide Angle Infrared Vehicle Lens

In addition to our lens design technology, we made use of our camera design technology cultivated through digital camera and Ricoh's 360-degree camera, and knowledge of CMOS sensors which are used as photo detectors, thus enabling to propose the best optical solution.

Product Details

Specification	HK-8145-457-1
Sensor size	1/3"
WAVELENGTH	λ 400-700nm(COLOR)
FOCAL LENGTH (EFL)	f 8 mm
F/NO (INFINITE)	F/NO 2.0
BACK FOCAL LENGTH	BFL 7.62 mm
FLANGE BACK LENGTH	FB 6.51 mm
FIELD OF VIEW (DIAGONAL)	D:40°
OPTICAL DISTORTION (DIAGONAL)	＜-5%
Thread Size	M12*P0.5
Element	6G+IR

· Name: Lens

· Brand: GTD

· Material: Glass

· Uses: There are products useful for car camera, such as rear-view parking track, 360-degree panorama display, car DVR, ADAS and car night-vision device etc

Waterproof 8mm Vehicle Camera Lenses 1/3" Wide Angle

Lens production inspection process

Quality Guarantee

car camera drop-ball standard

salt spray test

waterproof test

against UV light

IP6K9K

IP68

ROHS

film strength's resistance to scratch

Waterproof 8mm Vehicle Camera Lenses 1/3" Wide Angle
